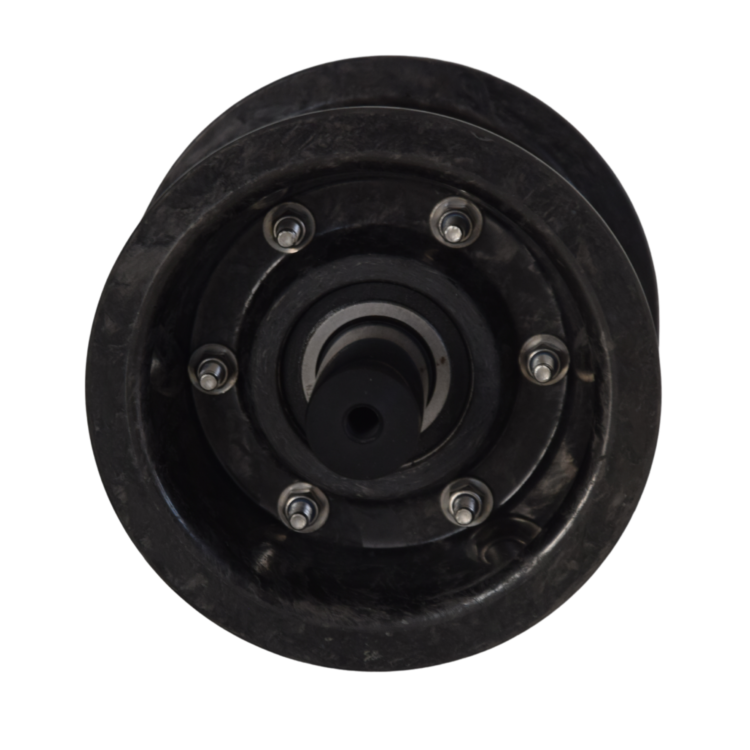

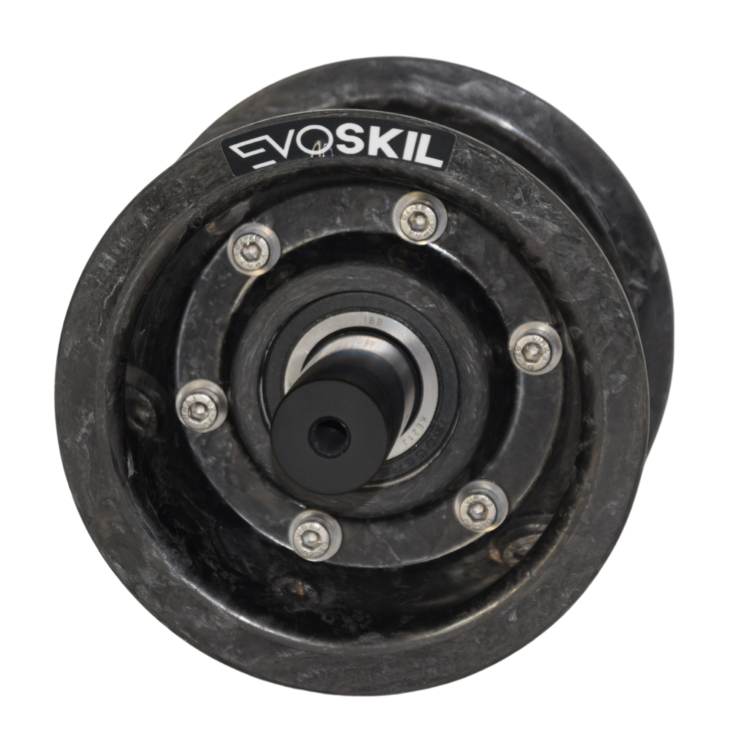

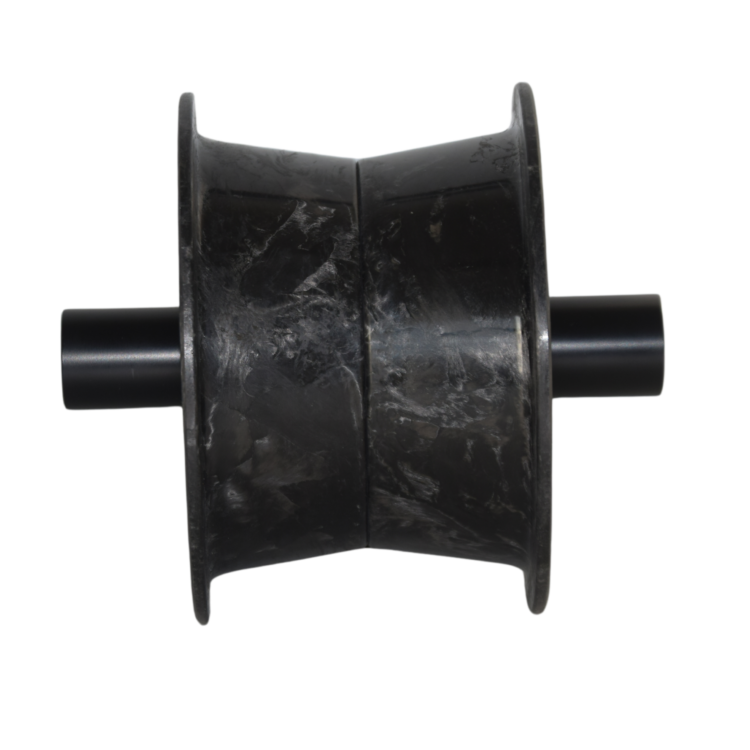

Roue Avant L=3.00 x 4"
384 € TTC
1 roue avant de dimensions L=3.00 x 4" 2 flasques, 1 arbre, roulement acier avec option inox vis d'assemblage et une valve
Read moreDimensions
Produit compatible avec le kit
Diamond Wheel - Roues freinées 6" L=4.00
Description
Features
Assembly instructions
1 roue avant de dimensions L=3.00 x 4″
2 flasques, 1 arbre, roulement acier avec option inox
vis d’assemblage et une valve
| Features | Detail |
| Materials | HexMC Carbon, Aluminium 7075 T6, Stainless steel 304L |
| Weight | 655 g |
| Dimensions | 3.00×4″ |
| Permissible static load | 600Kg per wheel |
| Maximum resistance | 3 tonnes +/-100 kg |
| Adaptability | longueur d’arbre modifiable et taraudage en bout d’arbre modifiable. Standard M8 |
| Manufacturing | Made in France |
| Durability | Corrosion-resistant, even in contact with salt water |
| Tests | Dimensional inspection, Inflation testing, Destructive testing, Endurance testing |
| Service supplémentaires | Service après-vente et garantie, Service sur mesure |
Under development
Under development
Compatible with Diamond Wheel - 6" braked wheels
From €2,640 incl. VAT
The EVOSKIL ULM rim is a fusion of advanced composite material technologies, aeronautical manufacturing processes and innovative design. It offers exceptional performance, strength and durability for a safer, more efficient flying experience. Benefit from cutting-edge technology combining safety, performance and durability for an incomparable flying experience.
The kit includes 2 braked wheels equipped with :
2 4.00x6'' carbon rims
2 rockets
2 braking systems
2 conduits rigides de liaison entre les 2 étriers avec vis banjo titane
Our design process
01
Compression molding
Carbone Hex MC is subjected to a temperature in excess of 100°C and a pressure of 30 tons in a specially designed press, shaping the material with custom molds.
02
Extraction and separation
Once the molding process is complete, the rim is carefully extracted and separated from the mold, using organic and natural products.
03
Visual and dimensional inspection
The rim undergoes a rigorous assessment, where we visually check its finish and precisely measure its dimensions to guarantee conformity.
04
Deburring
Any burrs of resin that may remain after molding are gently removed, ensuring a perfect finish for each piece.
05
CNC machining
The rim is machined using a digital milling machine to drill the holes needed to insert the assembly screws and tire inflation valve.
06
Mounting bearings and pins
We use special tools to fix the stainless steel pins to the rim, ensuring optimum positioning and facilitating subsequent fitting of the brake disc.
You may also find these products useful
The reference
for ulmexperts
Covering all the needs of our small aircraft, EVOSKIL carbon rims are the key element of an overall kit. The kit is meticulously designed, incorporating wheel, hub and a braking system specially engineered for perfect harmony.
